Homegrown Converted to 700c with new alternate Hayes 22mm Adapter

[Aussie Boy]

G’day, in a previous post you indicated a drawing of the adapter can be provided. It would be appreciated if you could please share a copy of the drawing. I’ll also work on making the adapter locally. Thanks for you help and keeping old bike relevant.

[bandm0713]

bikeric,

      Do you plan on making more adapters?



Thanks!



Brian.

[bandm0713]

bikeric,

      Do you plan on making more adapters?



Thanks!



Brian.

[bandm0713]

bikeric,

      Do you plan on making more adapters?



Thanks!



Brian.

[isartrails]

What is the thickness of this adapter?

@bikeric: Can you send the printing file? I am located in Germany.

[isartrails]

What’s the thickness of this adapter?

@bikeric: can you send the printing file? I am located in Germany…

[Retro Baby 60]

Are these availbale to purchase?

[tozoche]

Hi.  Any chance anyone still has one of these adapters for sale?  Also, which shimano brake caliper is used with this adapter?  I see it pictured in this thread, but no model name/number.  Thanks!  -Tom

[Retro Baby 60]

Wow, that is amazing thank you for posting this !

[737driver]

I changed the size off the bolt holes and made small adjustments to fit perfectly on my bike. unfortunately I can’t share the files here as this forum doesn’t allow this to be uploaded. But you can easily draw it yourself.

[737driver]

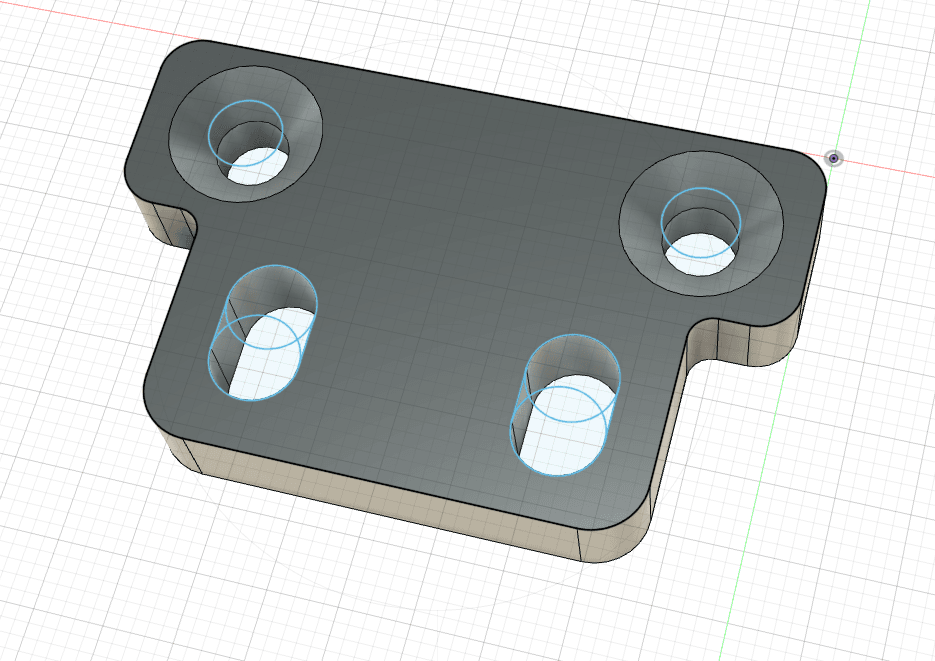

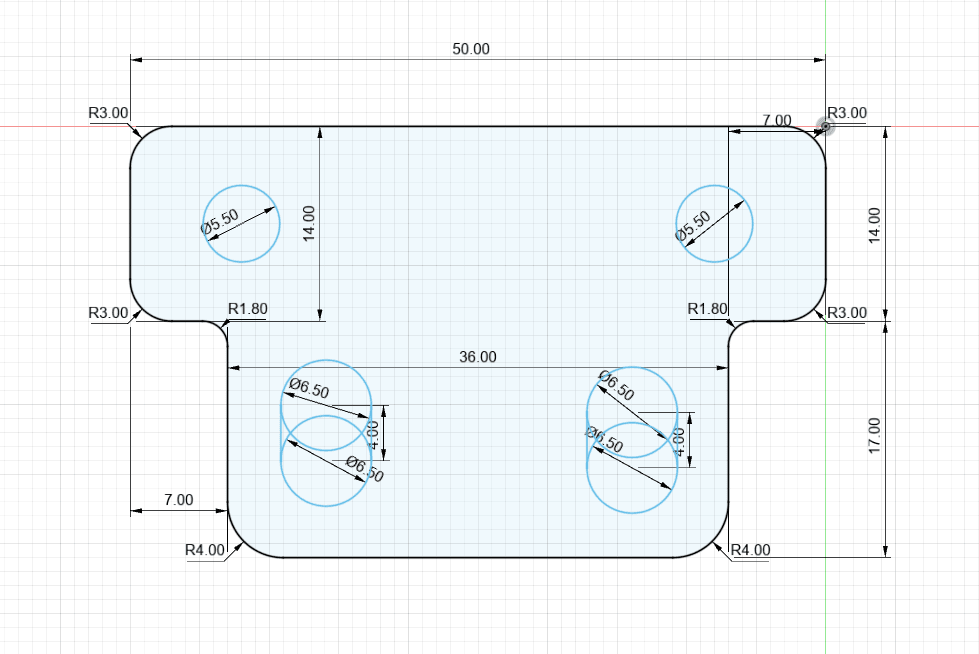

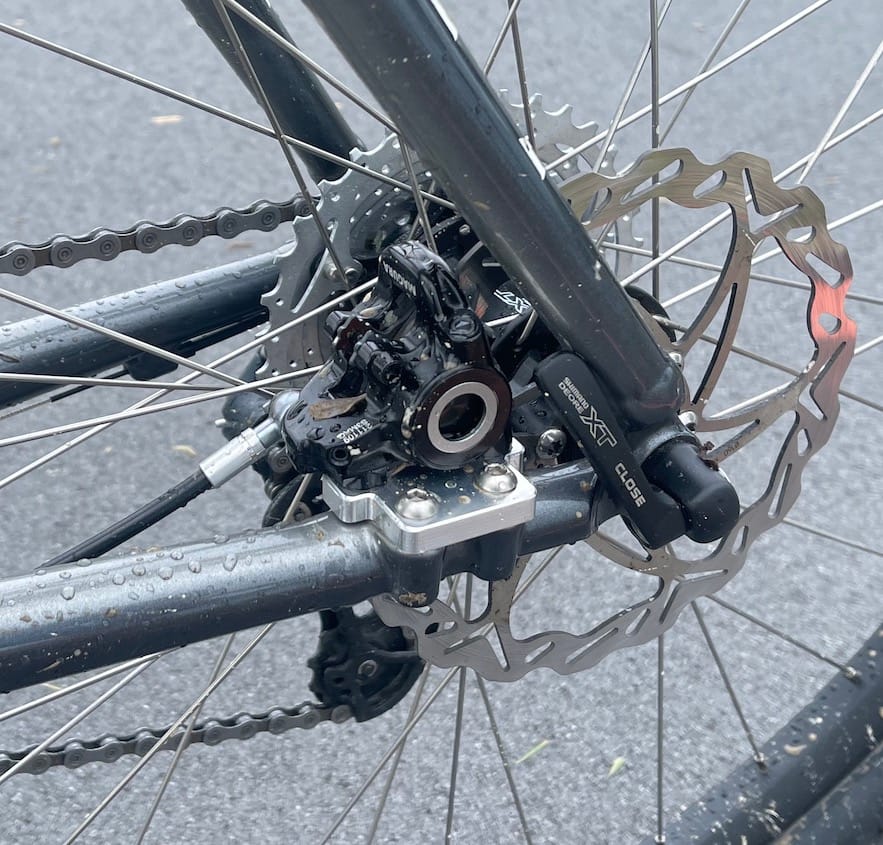

This is the drawing I made for my Klein Attitude Comp.

Edit; correct dimensions and final design

[Retro Baby 60]

This is perfect actually as eBay sell 6″x6″x1/4″ aluminum plates that this can be made from.

[Coolspot]

[quote=737driver]

I changed the size off the bolt holes and made small adjustments to fit perfectly on my bike. unfortunately I can’t share the files here as this forum doesn’t allow this to be uploaded. But you can easily draw it yourself.

[/quote]

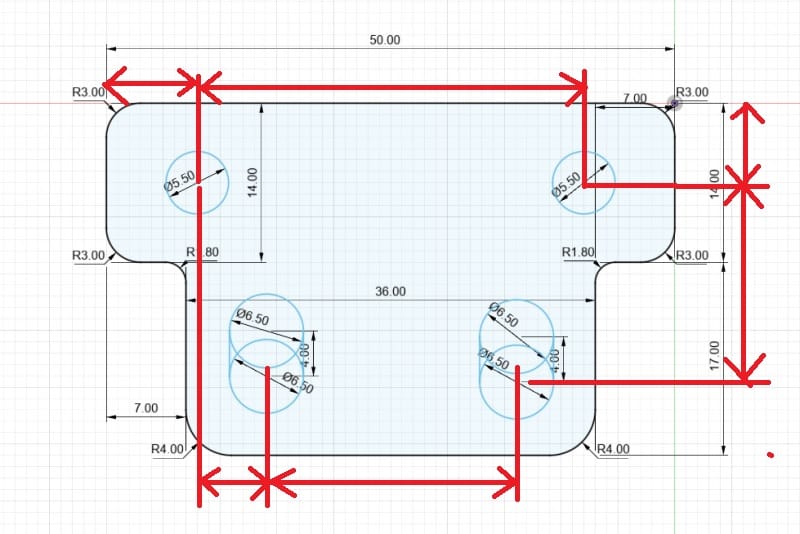

Hi!  I like your design!  Could you provide to positions of the holes on your drawing? see attached sketch.

 Is the plate 1/4” (6.35mm) thick?

What caliper are you using?  what about rotor size?

Thanks you!

[737driver]

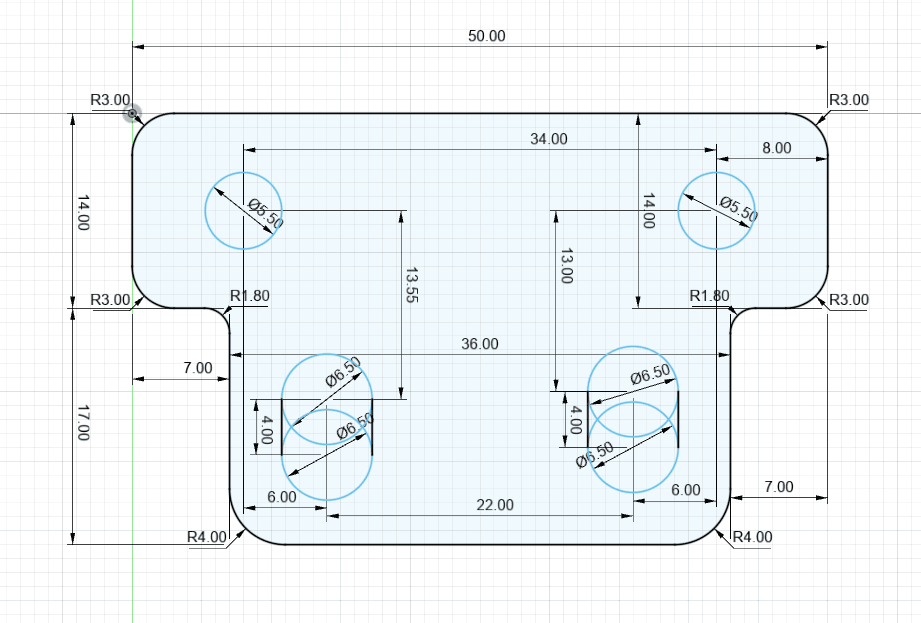

See drawing with additional dimensions. I have a Magura flatmount which is standard flatmount 34mm. and using 160mm rotor. I used a 3d-printer and made different designs and ended up with 7mm thick plate and positioned the slotted holes to minimum size and dimensions for aesthetic reasons.

[Coolspot]

Thank you very much!
